Energy Meter

TECHNO AC single-phase energy meter with PVC box, 2-pole MCB, inner wiring and fixing screw. Above multifunctional energy meter above can show parameters with kWh, voltage, amps, Hz, PF, and KW. The meter helps make the installation process easier.

Specification: Three Phase four wire Class: 1.0, 50 Hz Voltage: 3X240V AC Current Rating: 5-10A, 5-20A, 10-40A, 10-60A Display: Counter Display Parameters: kWh Applicable: IS 13779

Specification: Three Phase four wire Class: 1.0, 50 Hz Voltage: 3X240V AC Current Rating: 5-10A, 5-20A, 10-40A, 10-60A. Display: Counter Display Parameters: kWh Applicable: IS 13779

AC Single Phase two wire Techno make Multifunctional Energy Meter with Class 1 Accuracy and Certified with BIS with LCD Display and Energy Meter. For Industrial Use

AC Single Phase two wire Techno make Multifunctional Energy Meter with Class 1 Accuracy and Certified with BIS ISO Certified with 1 Year manufacturing Warranty

Techno LT Three Phase Four Wire Direct Multi-functional Energy meter with class 1 accuracy and certified with BIS Mark This is amp meter of 60 A with one year warranty

AC Single Phase two wire Techno make Multifunctional Energy Meter with Class 1 Accuracy and Certified with BIS One of our fast selling product in town

TECHNO MAKE THREE PHASE MULTIFUNCTIONAL DUAL SORCE ENERGY METER WITH PREPAID OPTION TECHNICAL PARTICULARS OF AC THREE PHASE ELECTRONIC ENERGY METER WITH DUAL SOURCE AND PREPAID FUNCTION

AC Single Phase two wire Techno make Multifunctional Energy Meter with Class 1 Accuracy and Certified with BIS

Techno LT Three Phase Four Wire Direct Multi-functional Energy meter with class 1 accuracy and certified with BIS Mark

AC Single Phase two wire Techno make Multifunctional Energy Meter with Class 1 Accuracy and Certified with BIS

AC Single Phase two wire Techno make Multifunctional Energy Meter with Class 1 Accuracy and Certified with BIS

AC Single Phase two wire Techno make Multifunctional Energy Meter with Class 1 Accuracy and Certified with BIS

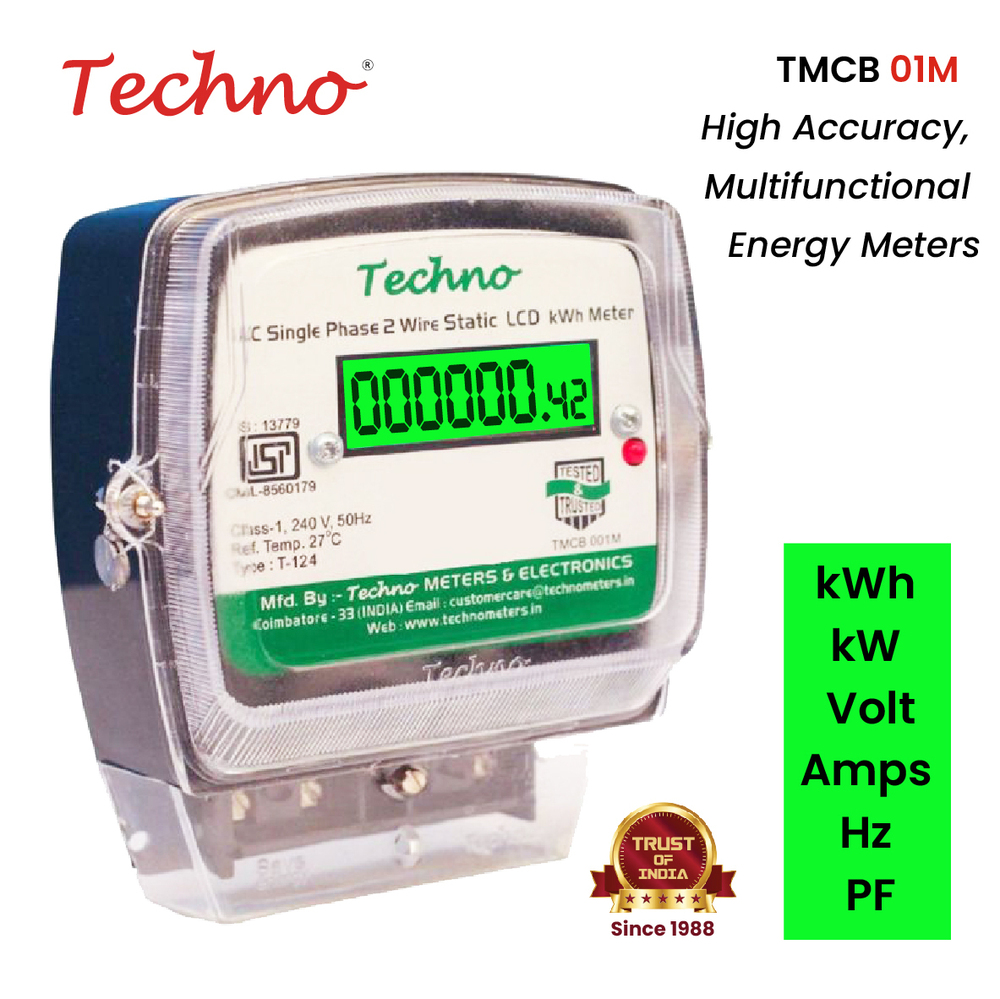

Techno Single Phase Electronics Energy Meters is capable for Multi Mounting option (Wall Mount, Din Mount, Panel Mount) & Showing Multifunctional Parameters with High Accuracy LCD Display (kWh, watt, Volt, Amps, Hz)

Single Phase Electronics Energy meter Ac Single Phase two wire Class: 1.0,50 Hz, 240V current Rating: 2.5-10A, 5-20A, 5-30A, 10-40A, 10-60A LCD Parameter: kWh-V-kW-A-PF-HZ Applicable : IS 13799 Latest ASIC and microcontroller based digital technology.

AC Single Phase two wire Techno make Multifunctional Energy Meter with Class 1 Accuracy and Certified with BIS

Specification: Display Parameters Kwh & Average Kw - 6 Display Digits (1 Decimal Place) Run Hours - 6 Display Digits (2 Decimal Place) Accuracy Class: 1.0Three Phase four wire Selection: Programmable through KeyPad Dimension: 96mm(H) x 96mm(W) x 75mm(D) Features Details Mains kWh LED indication. Calibration LED indication. Current Resolution (Auto ranging) “ 0.01A / 0.1A / 1A. Reverse LED indication. CT Ratio Programming (CTR values 5, 10, 20, 25, 30, 50, 60, 75, 100, 125, 150, 200, 250, 300, 400, 500, 600, 800, 1000, 1200). Bright Seven segment LED display for better readability. Auto scrolling & Manual mode selectable. RS485 communication (optional).

Specification: Display Parameters Kwh & Average Kw - 6 Display Digits (1 Decimal Place) Run Hours - 6 Display Digits (2 Decimal Place) Accuracy Class: 1.0Three Phase four wire Selection: Programmable through KeyPad Dimension: 96mm(H) x 96mm(W) x 75mm(D) Features Details Mains kWh LED indication. Calibration LED indication. Current Resolution (Auto ranging) “ 0.01A / 0.1A / 1A. Reverse LED indication. CT Ratio Programming (CTR values 5, 10, 20, 25, 30, 50, 60, 75, 100, 125, 150, 200, 250, 300, 400, 500, 600, 800, 1000, 1200). Bright Seven segment LED display for better readability. Auto scrolling & Manual mode selectable. RS485 communication (optional).

TECHNO AC single-phase energy meter with PVC box, 2-pole MCB, inner wiring and fixing screw. Above multifunctional energy meter above can show parameters with kWh, voltage, amps, Hz, PF, and KW. The meter helps make the installation process easier.

AC Single Phase two wire Techno make Multifunctional Energy Meter with Class 1 Accuracy and Certified with BIS

AC Single Phase two wire Techno make Multifunctional Energy Meter with Class 1 Accuracy and Certified with BIS

Techno Single Phase Electronics Energy Meters is capable for Multi Mounting option (Wall Mount, Din Mount, Panel Mount) & Showing Multifunctional Parameters with High Accuracy LCD Display (kWh, watt, Volt, Amps, Hz)
